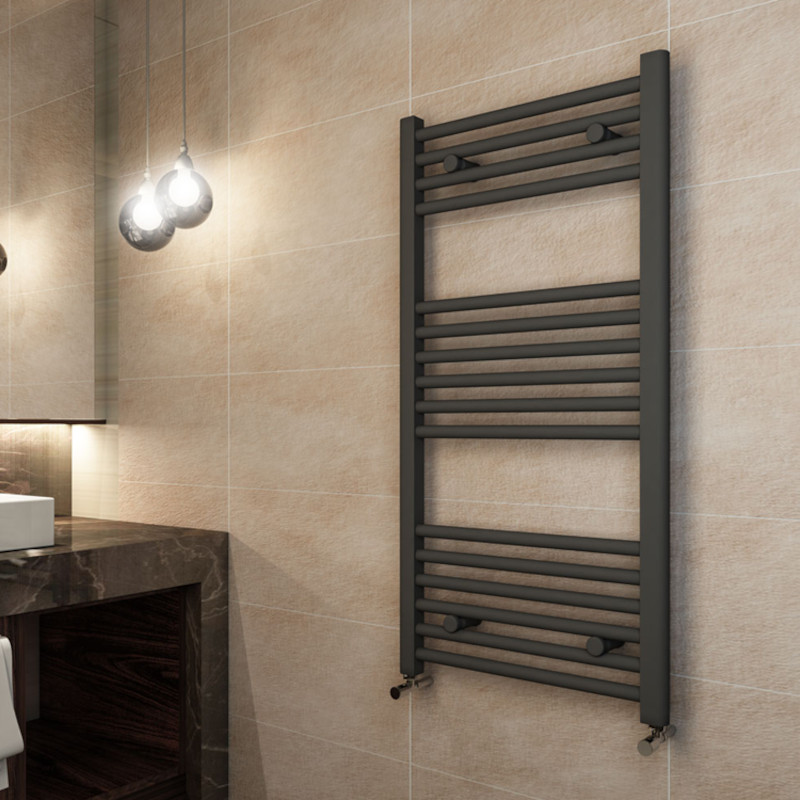

Wingrave Anthracite Grey Radiator

With its distinguished matte grey finish, this modern ladder style towel radiator brings class and superior heating output to any bathroom. Made from durable steel, this radiator is available in many sizes and is compatible with any heating system.

• Finish: Matte Anthracite Dark Grey
• Material: Mild Steel (tested to EN442 standard)
• 22mm Diameter horizontal round tubes
• Fuel Type: Cental Heating as standard, Dual Fuel and Electric are available
• For an all electric towel rail/radiator, fluid filling must be purchased
• For indirect heating systems only
• Tappings are approx. 44mm less than the width of the rail and approx. 65mm off the wall
• Wall fixing sets are included
• Matching Radiator Valves and Vent Caps are available
• Heat output is based on delta T60 degrees
• Guarantee: 5 year manufacturer''s warranty

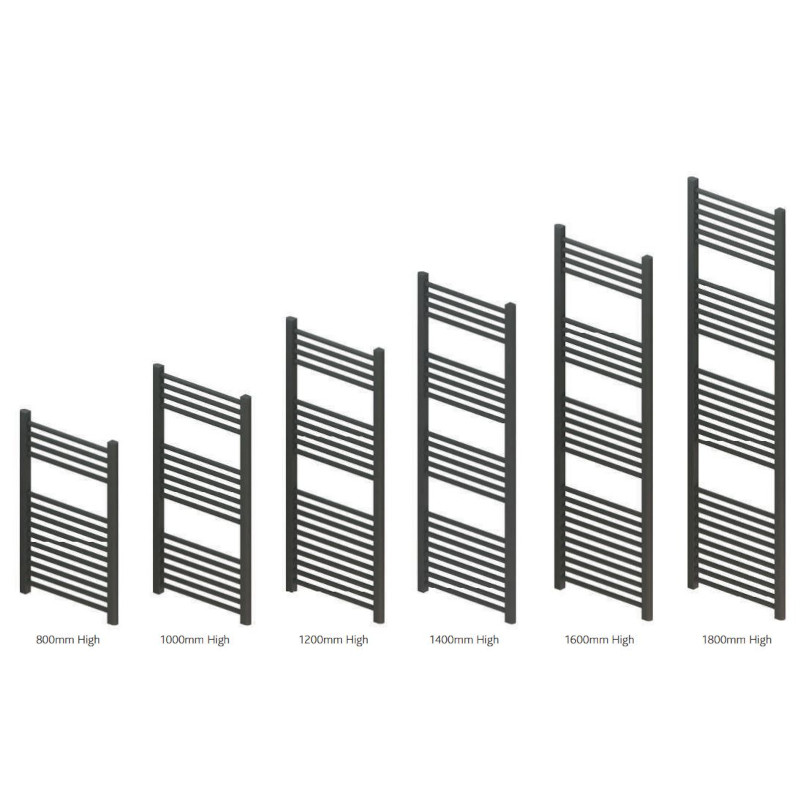

Available Options:

• Option 1: 800 x 400 (Watts: 374, BTU: 1276)
• Option 2: 800 x 500 (Watts: 445, BTU: 1518)
• Option 3: 800 x 600 (Watts: 517, BTU: 1764)
• Option 4: 1000 x 400 (Watts: 419, BTU: 1430)
• Option 5: 1000 x 500 (Watts: 496, BTU: 1692)
• Option 6: 1000 x 600 (Watts: 573, BTU: 1955)
• Option 7: 1200 x 400 (Watts: 514, BTU: 1754)
• Option 8: 1200 x 500 (Watts: 611, BTU: 2085)
• Option 9: 1200 x 600 (Watts: 708, BTU: 2416)
• Option 10: 1600 x 400 (Watts: 669, BTU: 2283)
• Option 11: 1600 x 500 (Watts: 794, BTU: 2709)
• Option 12: 1600 x 600 (Watts: 918, BTU: 3132)
• Option 13: 1800 x 400 (Watts: 764, BTU: 2607)
• Option 14: 1800 x 500 (Watts: 908, BTU: 3098)
• Option 15: 1800 x 600 (Watts: 1051, BTU: 3586)

Additional Optional Extras:

Add Electric Element:

• Type A:
  • Vertical & horizontal installation
  • PTC self regulating technology for excellent reliability and durability
  • Suitable for Vertical or Horizontal installation
  • Should be rated at less than 60% of radiator''s output
• Type D:
  • For vertical installation
  • Includes thermostat
  • Off season heating
  • Towel drying
  • Low running costs
  • Easy to install
  • Wide temperature range (10-60 degrees)
• Type E:
  • For vertical & horizontal installation
  • Includes thermostat
  • Off season heating
  • Towel drying
  • Low running costs
  • Easy to install
  • Wide temperature range (10-60 degrees)
• Type F:
  • Includes remote control
  • Turbo boost function
  • Off-season heating
  • Includes Cable Connection Cover
  • Programmable (Daily and Weekly)
  • Wide Temperature Range (10-60 degrees)
